InaMesh deploys MESH networks to LoRaWAN world
With only a few LoraWAN gateways it covers very large areas because of an advanced routing algorithm and path unlimited hops
InaMesh Protocol
No broadcast and flooding
Packets transmission doesn’t involve any broadcasting technique.
No routing tables
Routing information base (RIB) is not stored on each node:
- Less memory and CPU requirements: Reduces cost of node devices
- No need to update RIB: Reduces traffic and energy consumption
Packets contains data only
No extra routing information in packets, only required payload included:
- Theoretically unlimited hops (nodes depth)
- Less transmission time – less interference and latency
- Reduced energy consumption
InaMesh connectivity
- Standard LoRa RF Module for nodesNo hardware re-engineering is required
- Standard LoraWAN gatewaysNo gateways equipment need to be changed or reconsidered. Optionally Inamesh low-cost gateways can be used
- InaMesh firmware / middlewareTurns your devices into InaMesh nodes
- InaMesh Network Management SystemInamesh NMS works on top on LoraWAN stack, no IT infrastructure changes are required
Upgrading LoraWAN
with InaMesh

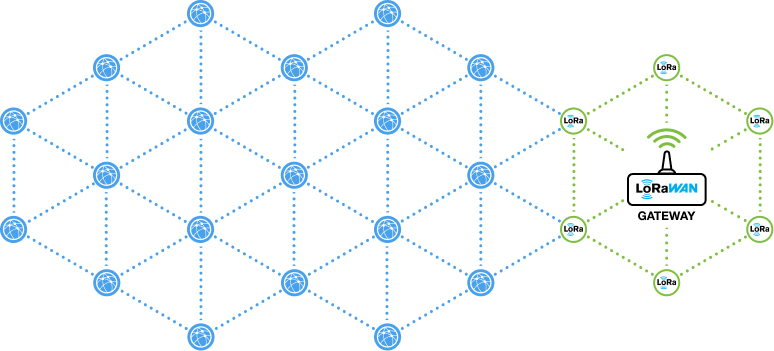

Hybrid topology: Star + Mesh
- Keep existing LoraWAN gateways
- Add upgraded nodes with InaMesh protocol
- Extend your network or cover gaps
Upgrading Nodes with InaMesh
- Keep your hardware design
- Node application remains the same
- Replace LoraWAN middleware with InaMesh
- InaMesh enabled node is ready!

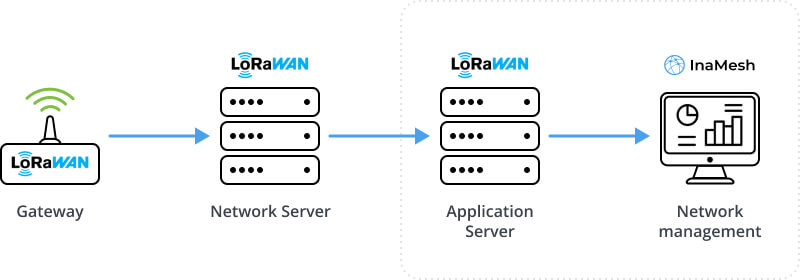

InaMesh and LoraWAN infrastructure
InaMesh works on top of LoraWAN infrastructure
- Compatible with LoraWAN Gateways and Network servers
- No need to change your Application server or Application code

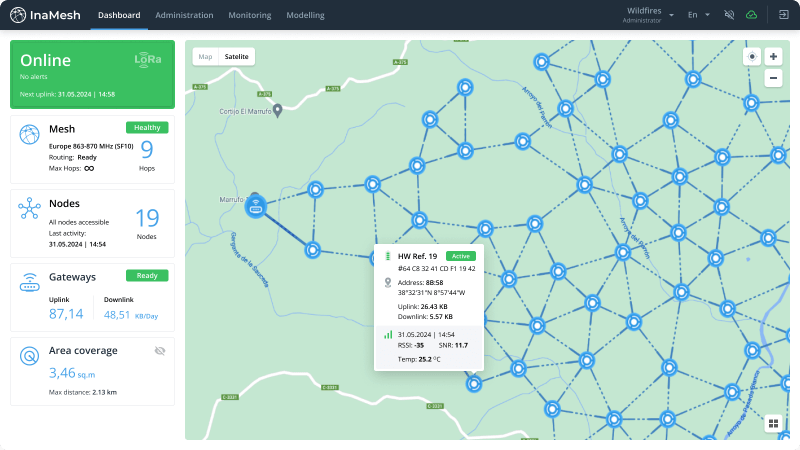

InaMesh Network Management
Network Management System
- Monitoring and controlling of InaMesh network
- Mesh network AI assisted modelling and optimization
InaMesh fact sheet
Hardware
Design
No actions required, support of Single / Dual MCU
MCU supported
STM32, Lora RF
Memory required
60 KB, replaces LoraWAN memory used
Protocol
Broadcast
No
Activation
Activation by Personalization (ABP)
Firmware Update
Over the Air (FUOTA)
Encryption
End-to-end, AES-128
Frequencies
LoraWAN compatible: 433MHz, 868MHz, 915 MHz
Management Software
Network planning
Al-assisted modelling and optimization
Monitoring and control
Installed on customer premises
LoraWAN integration
Build on top of LNS
Get more information
You can get more detailed information by downloading the PDF document
